Scaffolding Parts

Introduction:

Scaffolding parts are important part of ringlock scaffolding system.

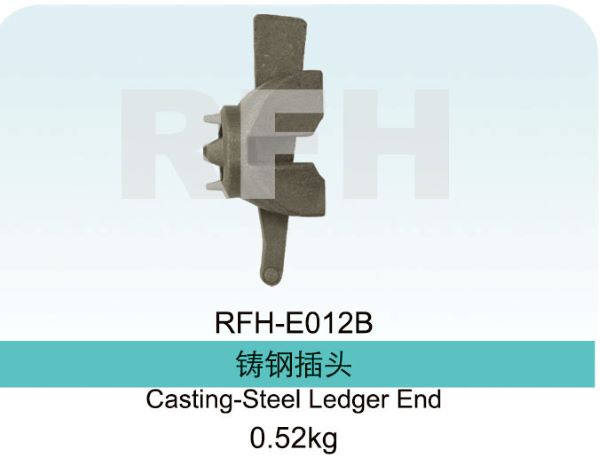

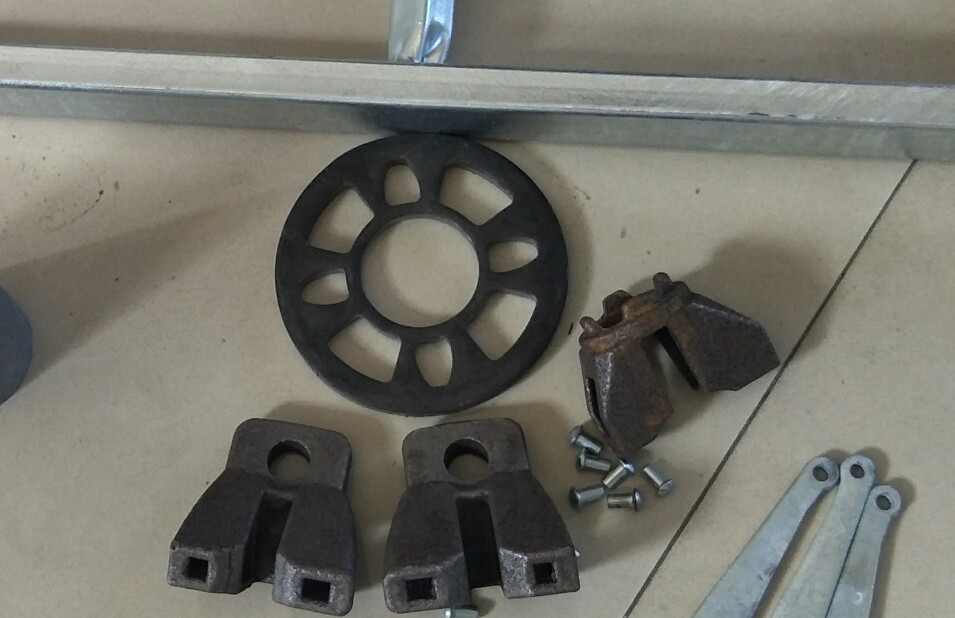

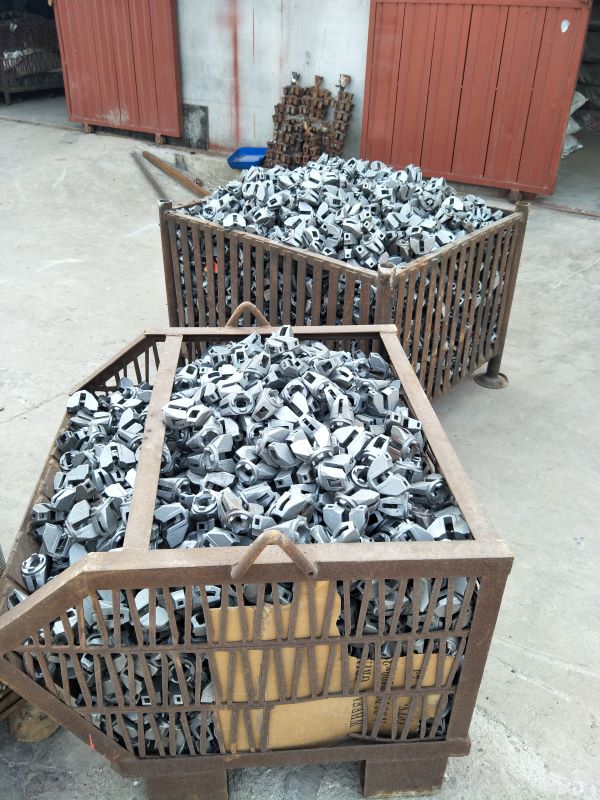

Casting steel ledger end welded in the ledger tube both ends.

Scaffolding is a temporary structure used in construction to support workers and materials during the building, maintenance, or repair of buildings and other structures. It typically consists of several key parts and components, each serving a specific function:

1.Standards (Verticals): These are the vertical tubes or pipes that form the main framework of the scaffolding. They are placed vertically and provide the structural support for the entire scaffold.

2.Ledgers (Horizontals): Ledgers are the horizontal tubes or pipes that connect between the standards, providing additional support and stability to the scaffolding structure.

3.Transoms: Transoms are horizontal crosspieces that are placed at right angles to the ledgers, forming the working platforms where workers stand.

4.Diagonal Braces: These are diagonal tubes or pipes that connect between the standards and ledgers. They help to stabilize the scaffolding structure and prevent it from swaying or collapsing.

5.Platforms (Decks): Platforms are the walking or standing surfaces where workers operate. They are typically made of wooden planks or metal and are supported by the transoms and ledgers.

6.Guardrails: Guardrails are installed along the edges of the platforms to prevent workers from falling off the scaffolding. Toeboards are often used at the base of the guardrails to further enhance safety.

7.Base Plates: Base plates are placed under the standards to distribute the load and provide stability on the ground surface.

8.Couplers: Couplers are fittings that connect the tubes or pipes of the scaffolding together securely. They come in various types depending on their specific application, such as swivel couplers, right-angle couplers, and putlog couplers.

9.Adjustable Jacks: These are used to adjust the height of the scaffolding to ensure it is level on uneven surfaces.

10.Ladders: Scaffolding ladders are attached to provide access to higher levels of the scaffolding safely.

11.Ties and Anchors: Ties and anchors are used to secure the scaffolding to the building or structure it is being erected against, ensuring stability and safety.

These are the basic parts of scaffolding, but configurations and additional components can vary depending on the specific requirements of the job site and safety regulations. Each part plays a crucial role in ensuring the safety and functionality of the scaffolding structure during construction activities.
